PaneraLux Lights Accessories

$19.99 USD

Sale Sold out

Shipping calculated at checkout.

Category Tail Plug kit Top Mount Buckles / 22 pcs Side Mount Buckles / 22 pcs 0.48m/19.1in Profile 0.97m/38.2in Profile 1m/39.4in Stainless Steel Profile

Quantity

Shipping Policy

7-15 business days, delivery may take a longer time in holiday shopping season.We will make every effort to ensure your purchased product reaches you within the stated time frame, but we make no guarantees as issues can arise that are outside of our control. Customs clearance may increase the delivery time for some countries.

View full details

Tail Plug kit and Side Mount Buckles PaneraLux

Side mounting buckle

This kit are side mounting buckles, suitable for fixing pool light strips mounted under the pool coping.
Side mounting buckle components and dimensions, buckle base size L * W * H: 40 * 19 * 23.1mm / 1.57 * 0.75 * 0.91in; pressure buckle size L * W * H: 19 * 18.5 * 7mm / 0.75 * 0.73 * 0.28in.
Installation spacing: use 1 side mounting buckle for every 0.25 meters; use one mounting buckle at 10cm/4in on each side of the corner to fix it.

Tail Plug kit and Top Mount Buckles PaneraLux

TOP mounting buckle

This kit are top mounting buckles, suitable for fixing pool light strips mounted on the pool wall.
Top mounting buckle components and dimensions, buckle base size L * W * H: 30 * 23 * 15.5mm / 1.18 * 0.91 * 0.61in; pressure buckle size L * W * H: 19 * 22 * 7mm / 0.75 * 0.87 * 0.28in.
Installation spacing: use 1 top mounting buckle for every 0.25 meters; use one mounting buckle at 10cm/4in on each side of the corner to fix it.

0.48m/1.57ft Profile

PC mounting profile is special for IP68 pool series light strip. There are two types: L: 485mm/19.1in, W*H: 18.4*14.2mm / 0.72*0.56in.
The 0.485 m profile comes with 2 screws and 2 expansion tubes;Fixing with screws or silicone adhesive.
The profile is rigid and non-bendable; it can be used with mounting clasps. Specific quantities can be ordered depending on the pool light drawing.

0.97m/3.18ft Profile

PC mounting profile is special for IP68 pool series light strip. There are two types: L: 970mm/38.2in, W*H: 18.4*14.2mm / 0.72*0.56in.
the 0.97 m profile comes with 3 screws and 3 expansion tubes;Fixing with screws or silicone adhesive.
The profile is rigid and non-bendable; it can be used with mounting clasps. Specific quantities can be ordered depending on the pool light drawing.

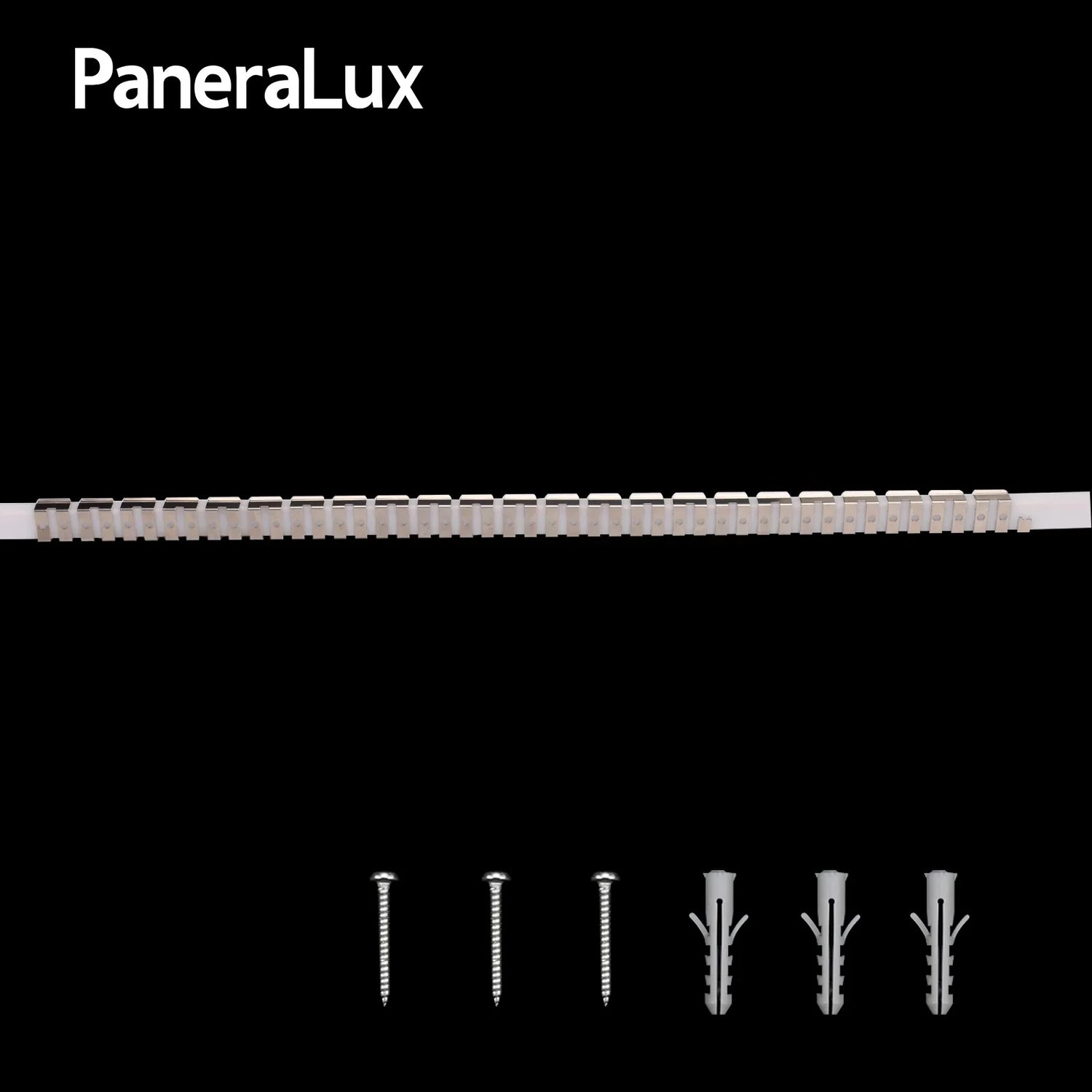

1m/3.28ft Stainless Steel Profile

Stainless steel mounting profile is special for IP68 pool series light strip. The size for stainless steel profile: L: 1000mm/39.4in, W*H: 16.5*9mm / 0.65*0.35in.
The profile can be used for flush mounting and surface mounting.
The profile is bendable. Specific quantities can be ordered depending on the pool light drawing.

outdoor led tape light strip cutting method from PaneraLux

Cutting instructions for pool light strip

Mark the excess part of the light strip as point A;
Cut the light strip 50mm/1.97in forward of the point A;
Light up the strip and locate the last light bead that is lit at the cut of the strip, mark it as point B;
Make sure that point B is in front of the point A and cut off the light strip after point B.

led strip lights for outside tail plug installation method from PaneraLux

Pool Strip Reseal Instructions

Fully insert the plug into the cut end of the strip;
Place the strip into the base and fill all gaps inside the base with RVT-1 Silicone Rubber;
Place the center stand into the base, press down on the base with the cover plate, and secure it with the stainless steel screws;
Install the pool strip after the adhesive has cured for 24 hours.
