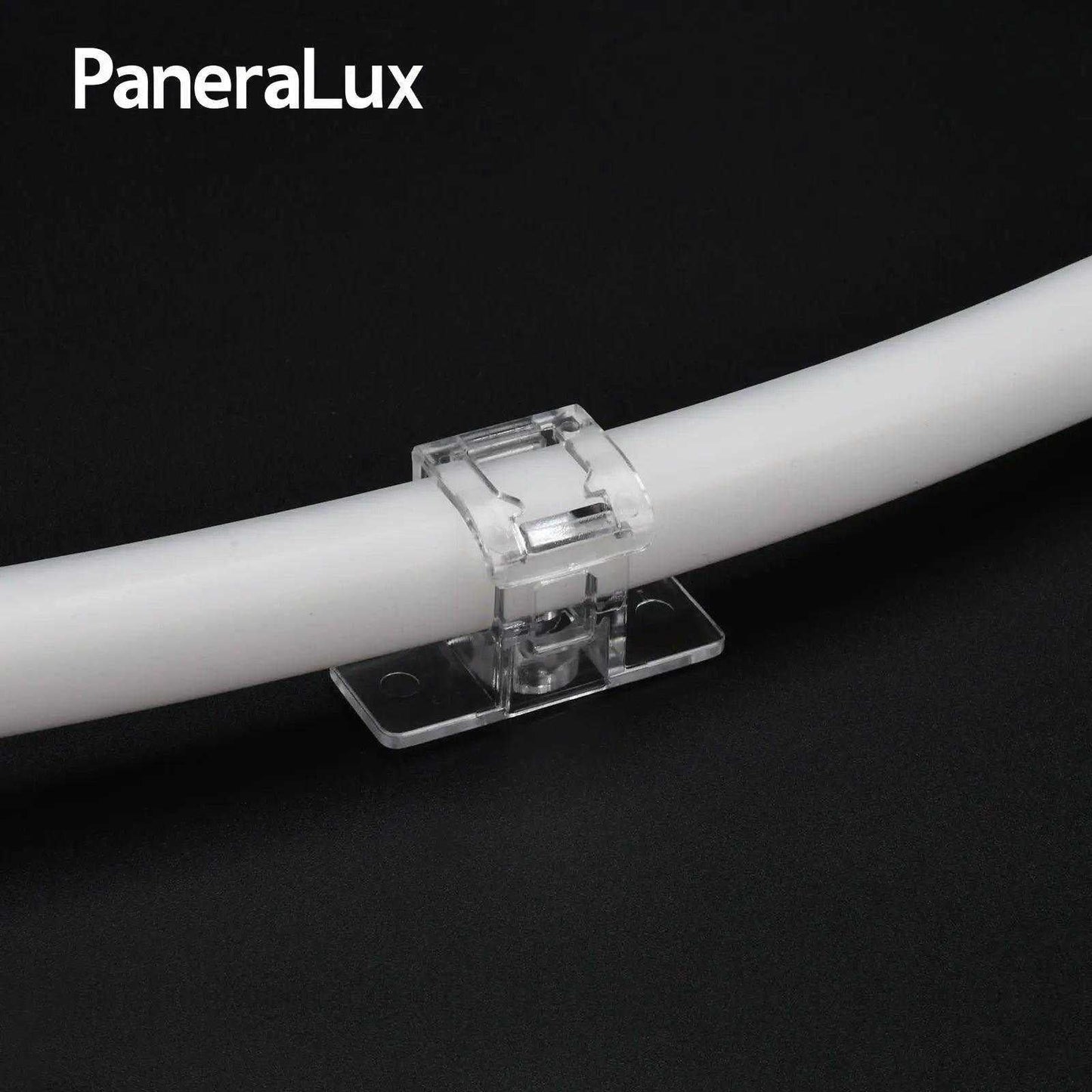

Side mounting buckle
- This kit are side mounting buckles, suitable for fixing pool light strips mounted under the pool coping.
- Side mounting buckle components and dimensions, buckle base size L * W * H: 40 * 19 * 23.1mm / 1.57 * 0.75 * 0.91in; pressure buckle size L * W * H: 19 * 18.5 * 7mm / 0.75 * 0.73 * 0.28in.
- Installation spacing: use 1 side mounting buckle for every 0.25 meters; use one mounting buckle at 10cm/4in on each side of the corner to fix it.
![Tail Plug kit and Top Mount Buckles PaneraLux](http://paneralux.shop/cdn/shop/products/Tail-Plug-kit-and-Mount-Buckles-PaneraLux-1697072401960_b65892ee-6995-41d8-b176-16d3c60af6a8-717851.jpg?v=1703226843&width=1500)

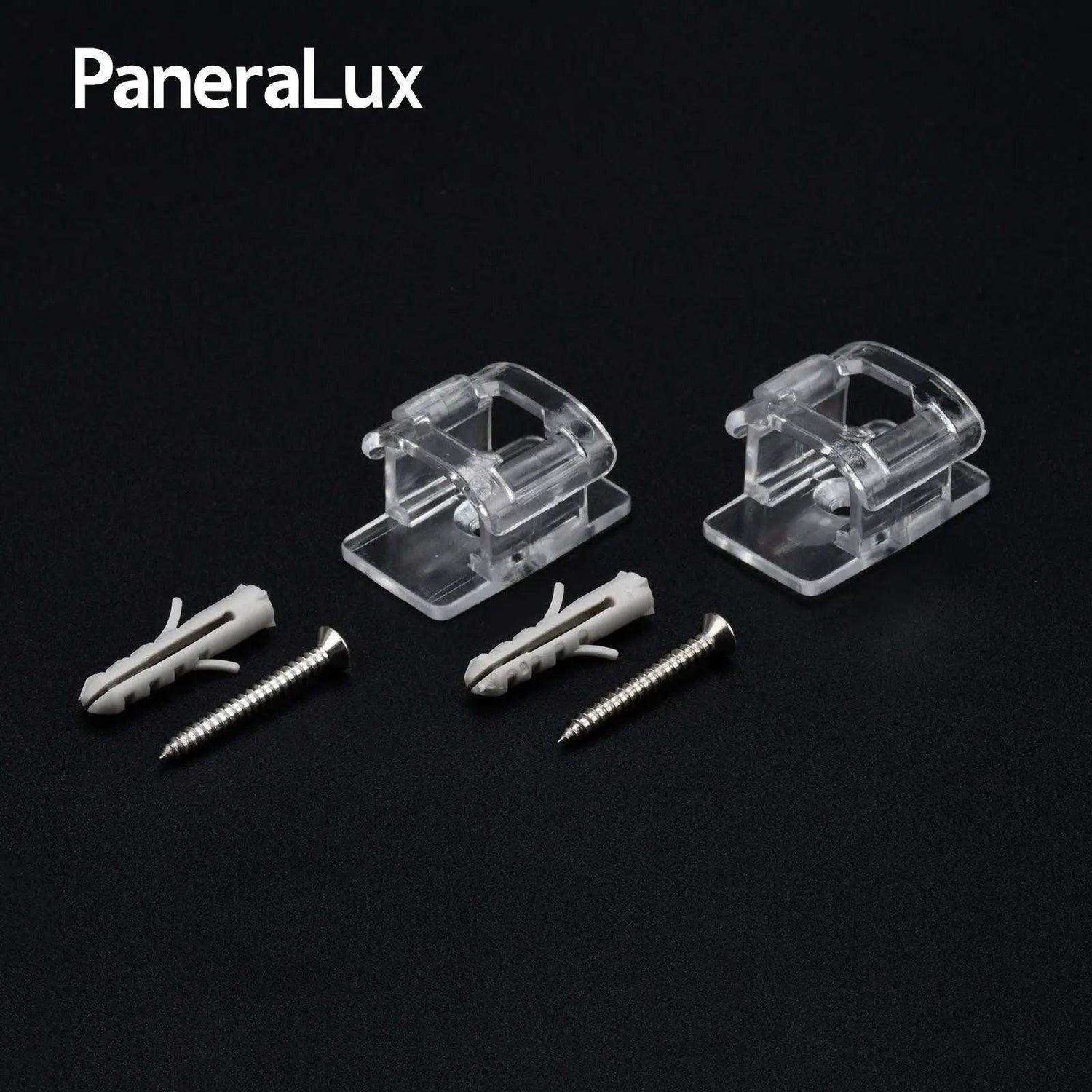

TOP mounting buckle
- This kit are top mounting buckles, suitable for fixing pool light strips mounted on the pool wall.
- Top mounting buckle components and dimensions, buckle base size L * W * H: 30 * 23 * 15.5mm / 1.18 * 0.91 * 0.61in; pressure buckle size L * W * H: 19 * 22 * 7mm / 0.75 * 0.87 * 0.28in.
- Installation spacing: use 1 top mounting buckle for every 0.25 meters; use one mounting buckle at 10cm/4in on each side of the corner to fix it.
![PaneraLux Lights Accessories 0.48m profile](http://paneralux.shop/cdn/shop/files/1_32fa918a-9864-470f-bf6e-cef280c6f079.jpg?v=1704247631&width=1500)

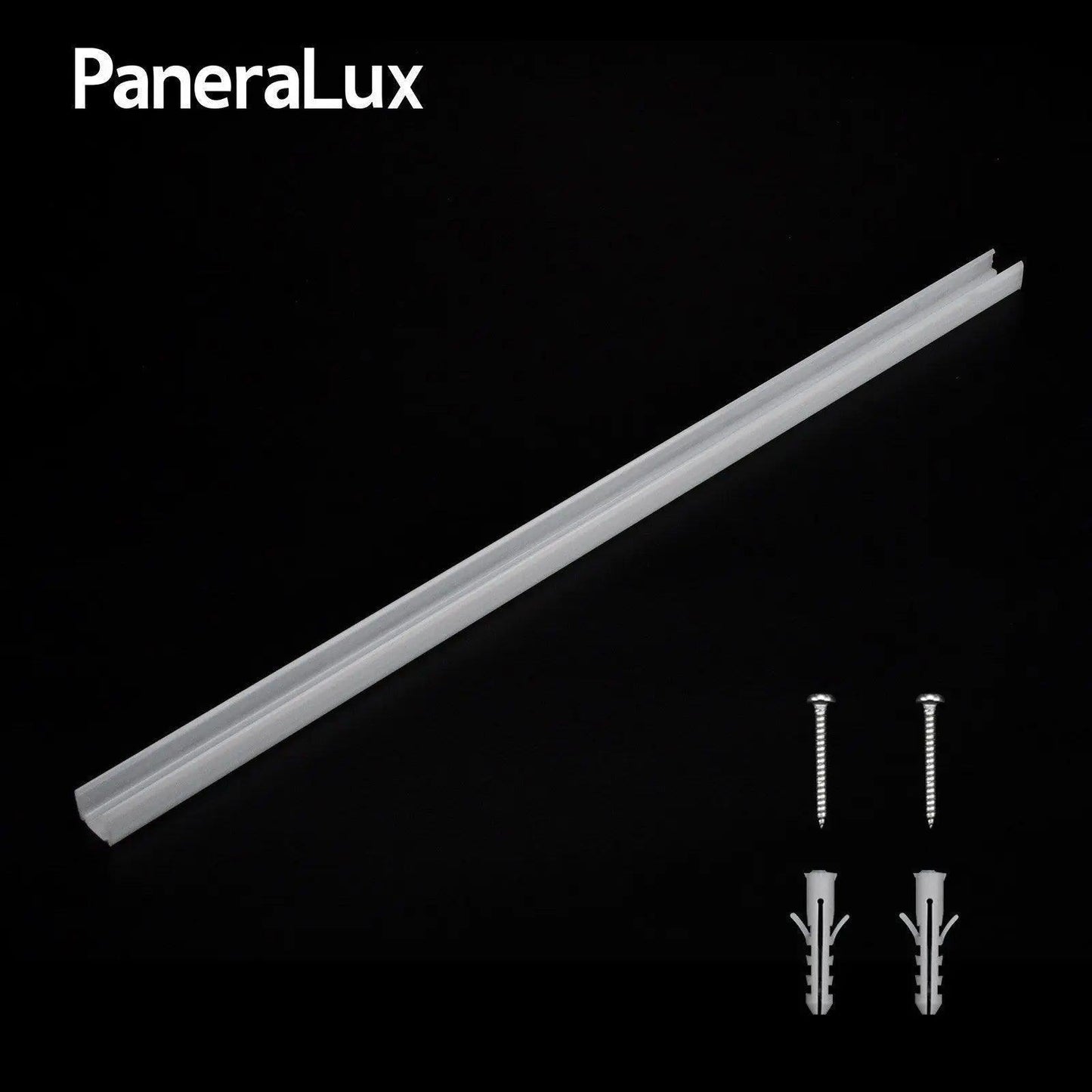

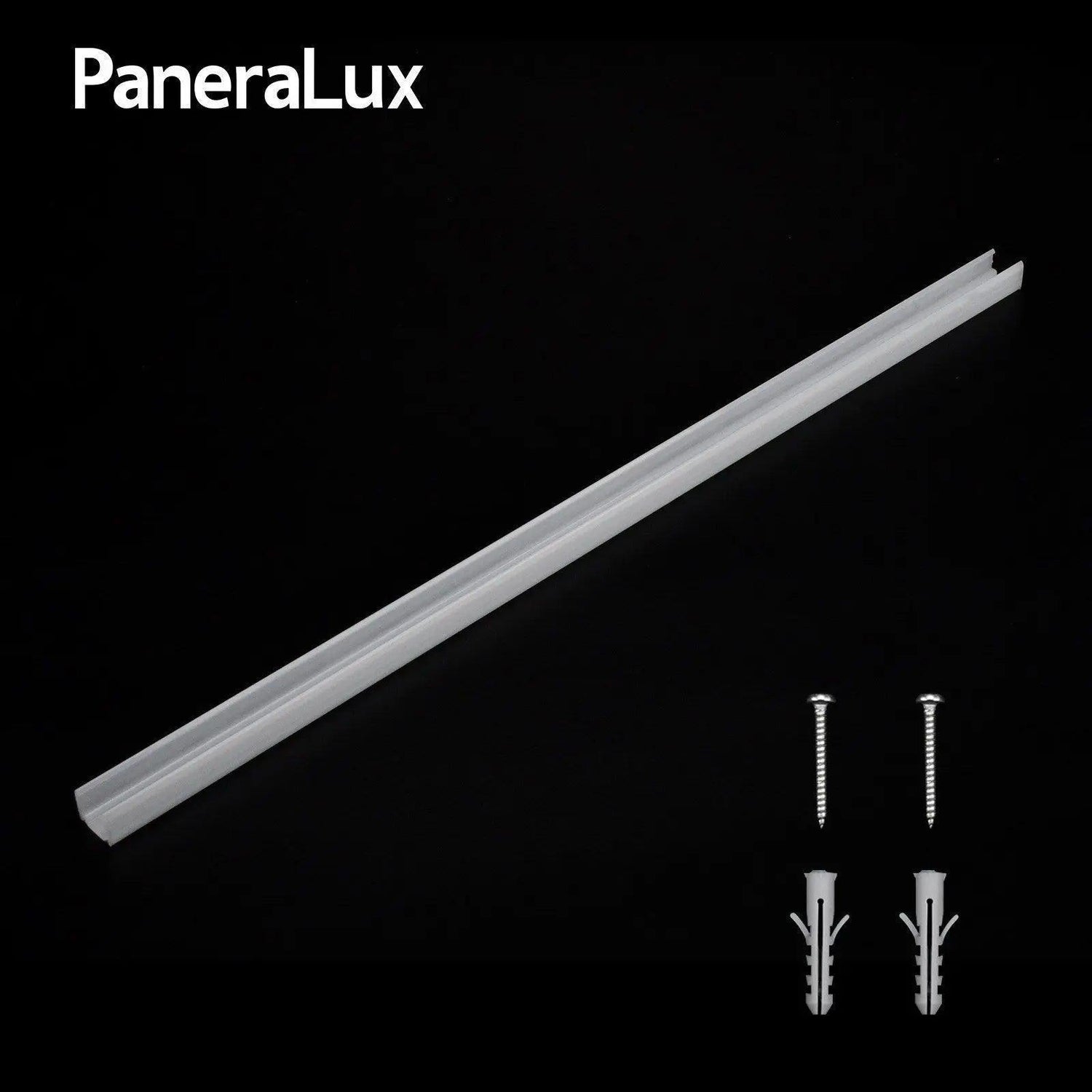

0.48m/1.57ft Profile
- PC mounting profile is special for IP68 pool series light strip. There are two types: L: 485mm/19.1in, W*H: 18.4*14.2mm / 0.72*0.56in.
- The 0.485 m profile comes with 2 screws and 2 expansion tubes;Fixing with screws or silicone adhesive.
- The profile is rigid and non-bendable; it can be used with mounting clasps. Specific quantities can be ordered depending on the pool light drawing.
![PaneraLux Lights Accessories 0.97m profile](http://paneralux.shop/cdn/shop/files/1_b1c9996e-96fb-442b-a134-89e59fc7a1d9.jpg?v=1704247631&width=1500)

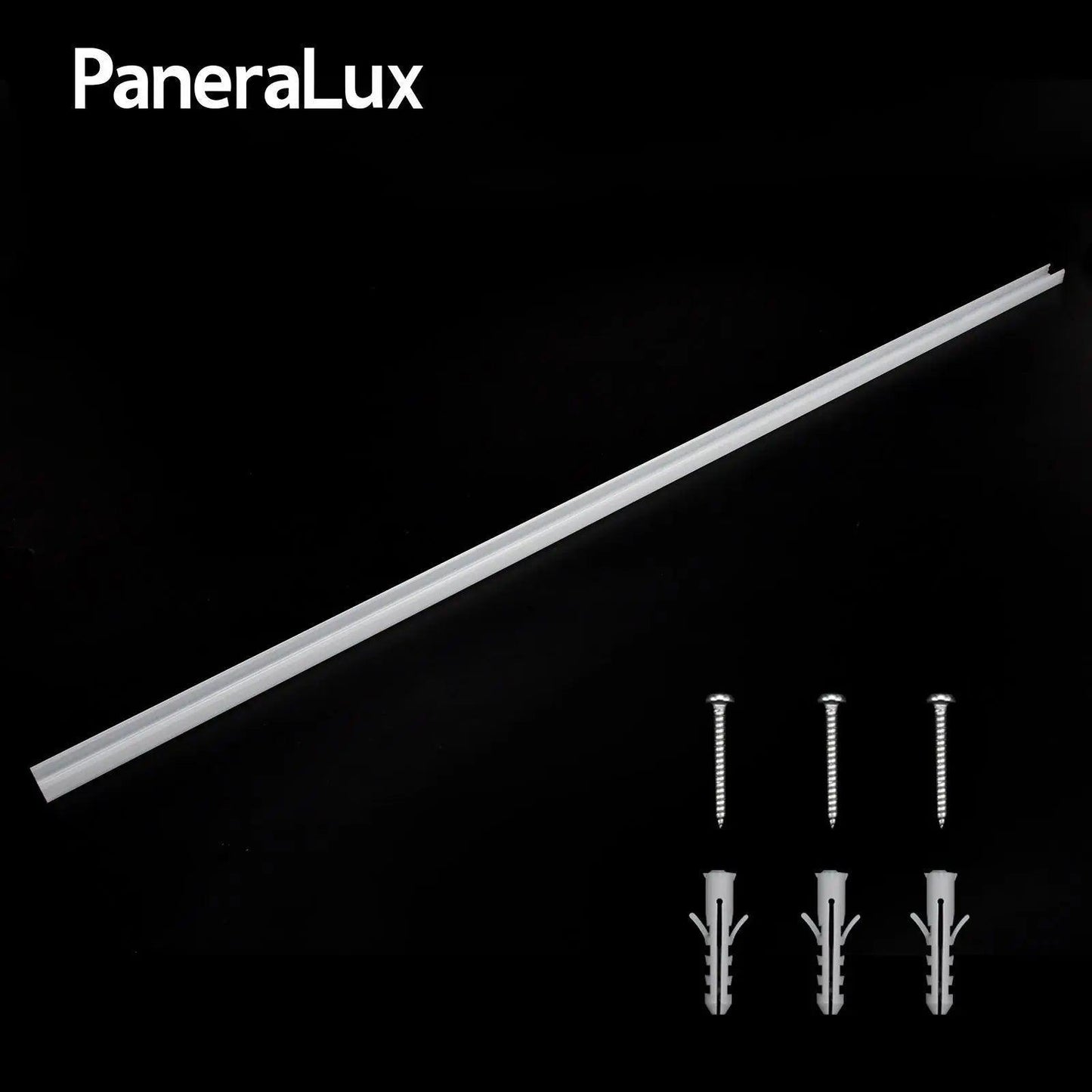

0.97m/3.18ft Profile
- PC mounting profile is special for IP68 pool series light strip. There are two types: L: 970mm/38.2in, W*H: 18.4*14.2mm / 0.72*0.56in.
- the 0.97 m profile comes with 3 screws and 3 expansion tubes;Fixing with screws or silicone adhesive.
- The profile is rigid and non-bendable; it can be used with mounting clasps. Specific quantities can be ordered depending on the pool light drawing.
![outdoor led tape light strip cutting method from PaneraLux](http://paneralux.shop/cdn/shop/files/3_50b70d8b-9f86-48c0-b3c7-453d181c67d9.jpg?v=1695885246&width=1500)

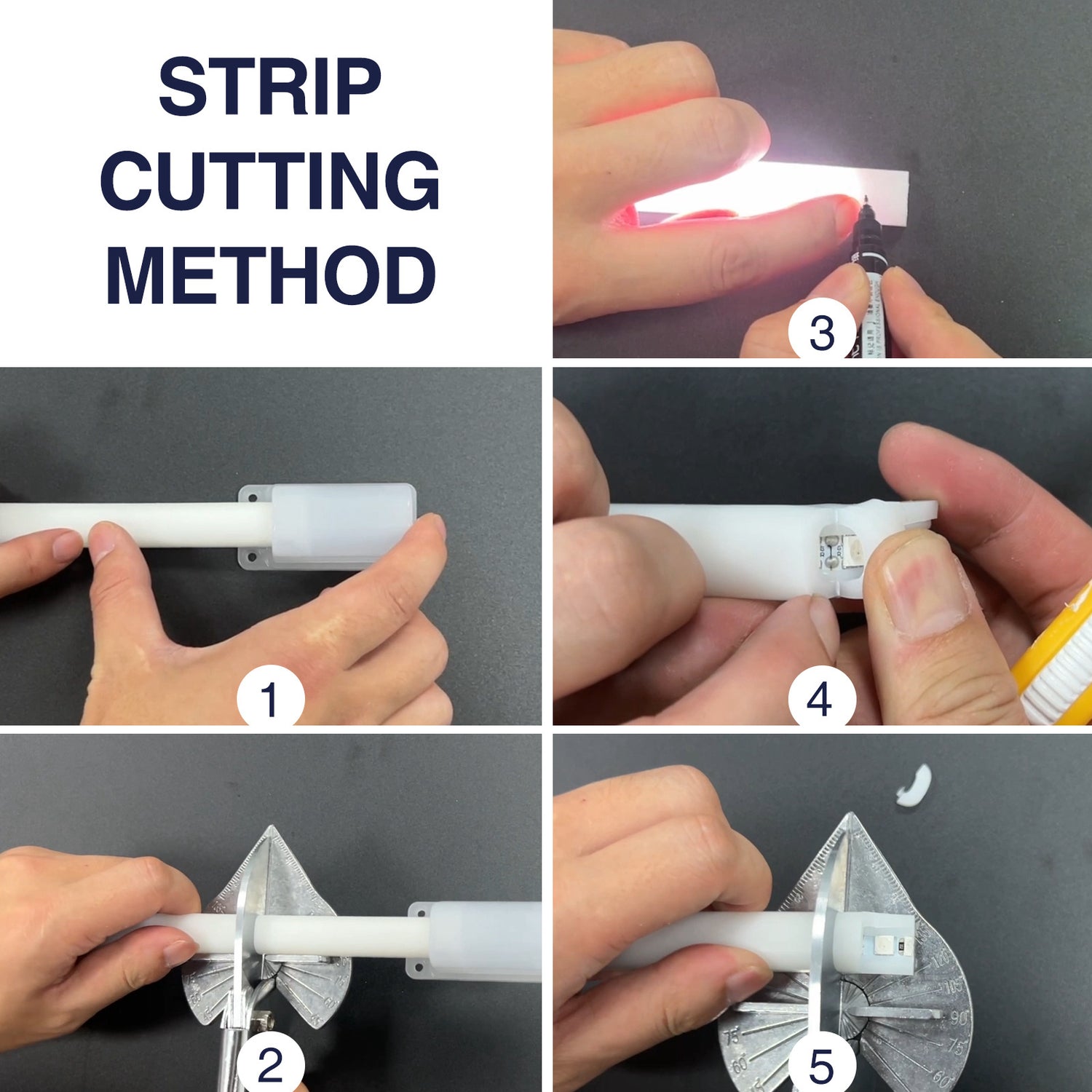

Cutting instructions for pool light strip
- Mark the excess part of the light strip as point A;
- Cut the light strip 50mm/1.97in forward of the point A;
- Light up the strip and locate the last light bead that is lit at the cut of the strip, mark it as point B;
- Make sure that point B is in front of the point A and cut off the light strip after point B.
![led strip lights for outside tail plug installation method from PaneraLux](http://paneralux.shop/cdn/shop/files/4_59af3d28-dc86-47f9-8bab-86d05bc9c10e.jpg?v=1695885999&width=1500)

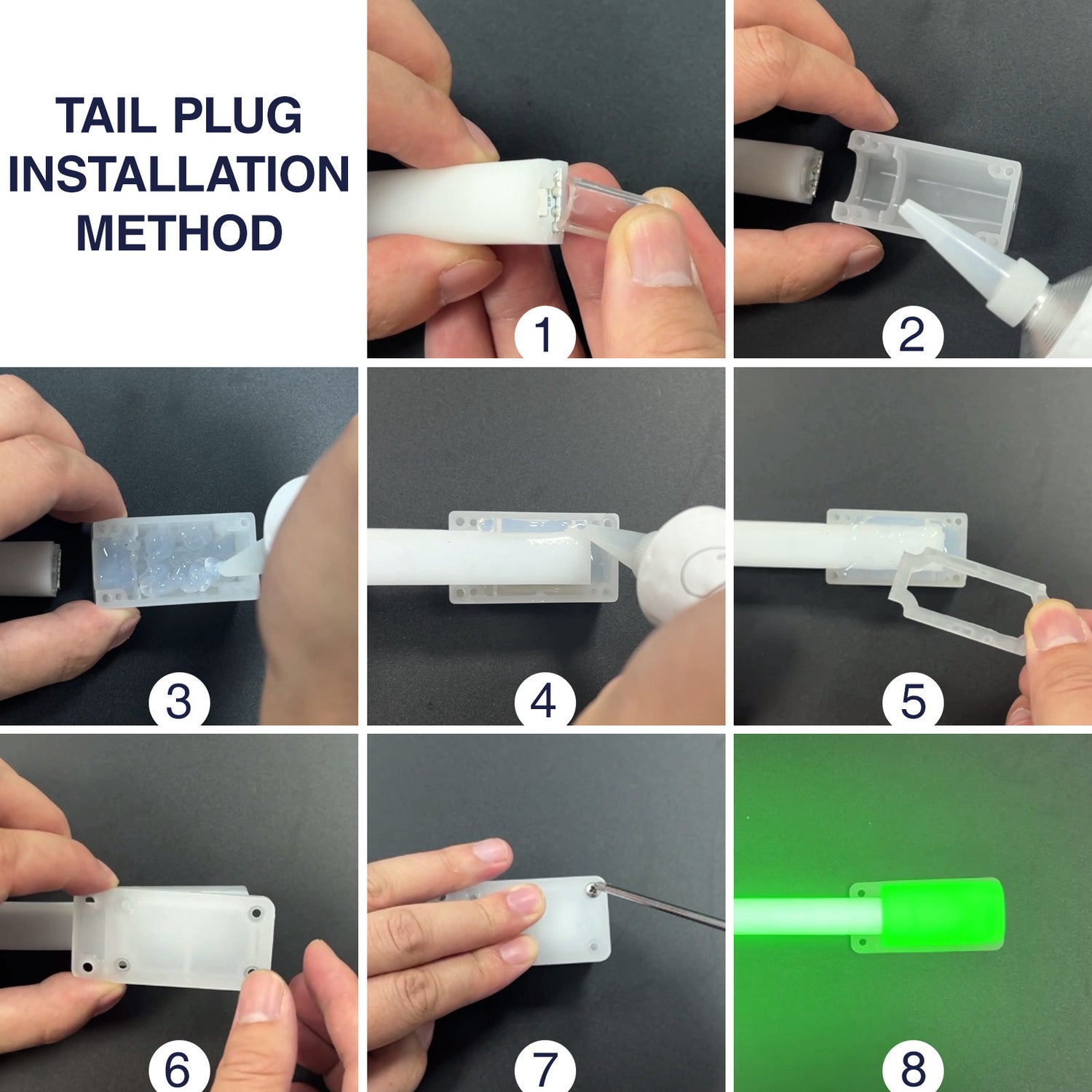

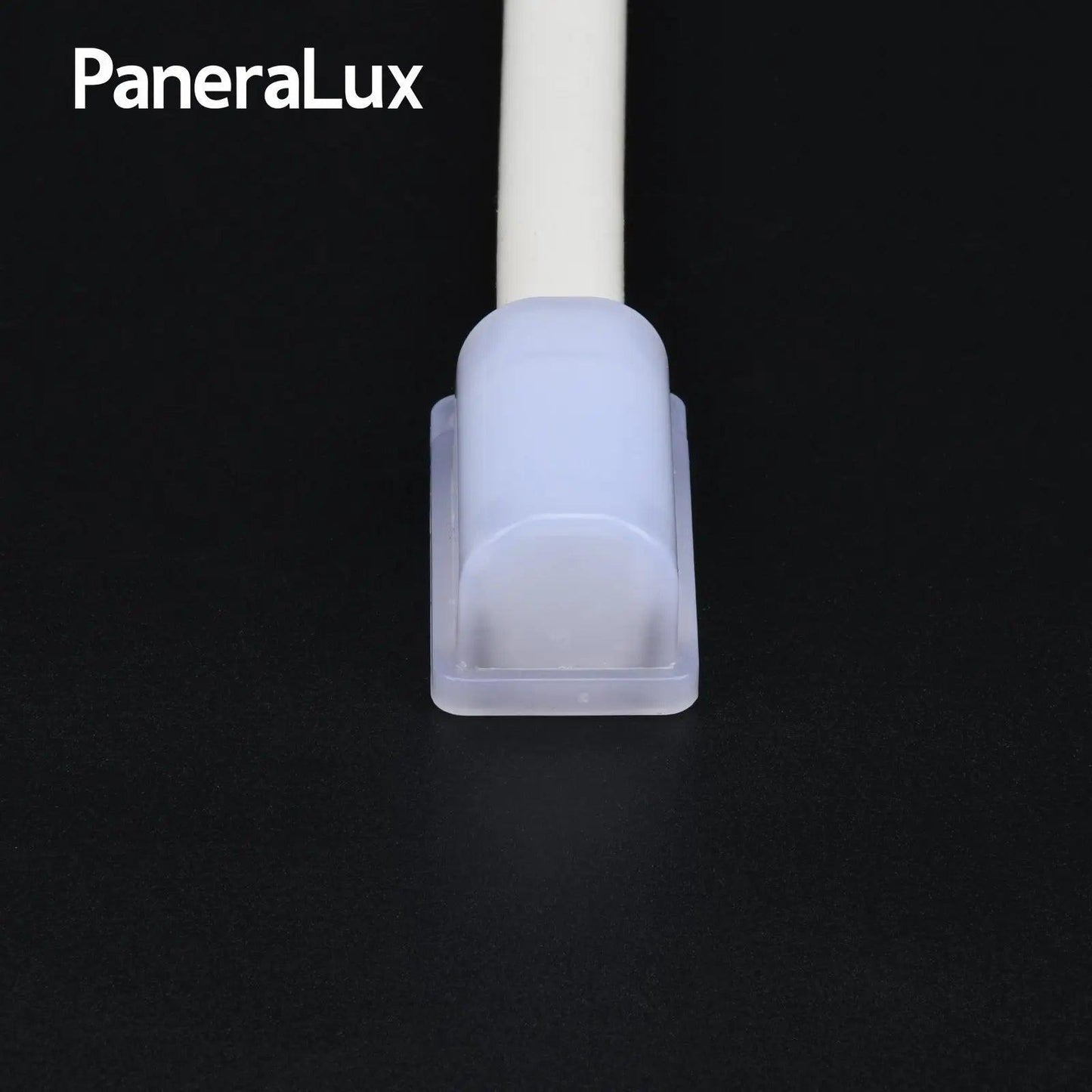

Pool Strip Reseal Instructions
- Fully insert the plug into the cut end of the strip;
- Place the strip into the base and fill all gaps inside the base with RVT-1 Silicone Rubber;
- Place the center stand into the base, press down on the base with the cover plate, and secure it with the stainless steel screws;
- Install the pool strip after the adhesive has cured for 24 hours.
