Pool Light Strip Installation Accessories — Plastic Profiles Using Guiding

April 29, 2024

When purchasing pool light strips, the first thing users consider is which accessories to use for installation. For individual buyers, the mounting buckle is a good choice. It enables the installation of pool light strips and supports the use of silicone adhesive to fix them, thus avoiding damaging the pool base. In this article, I will introduce another mounting accessory - plastic profiles. Why use plastic profiles? Because plastic profiles have a number of advantages that are unsurpassed by mounting buckles:

Better concealment: recessed mounting with the pool wall.

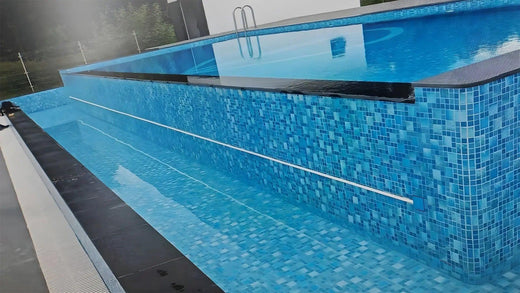

Perfect fit: the light strip fits the pool perfectly 100%, presenting an excellent linear lighting effect.

Enhance the aesthetics: you can only see the light but not the light strip, enhancing the overall aesthetics of the pool.

Given that the installation of plastic profiles requires a high level of construction experience and handling, we recommend that pool builders and designers use plastic profiles for their projects.

Specifications and buying advice

The plastic profile is made of white "polycarbonate", which can be cut and not bent.

Selection of plastic profiles:

Use profiles with lengths of 48.5 cm and 97 cm for surface mounting and recessed mounting.

Profiles with a length of 5 cm can only be used for surface mounting.

Profile mounting surface & fixing method

The installation of plastic profiles is divided into Surface mounting and Recessed mounting. Plastic profiles can be fixed with screws and glued.

(Note: glue is not included in the accessories, users need to buy it by themselves.)

A.Surface mounting

B.Recessed mounting

Plastic profile installation instructions

1.Correct placement of the light strip into the plastic profile.

2.Profile surface mounting

Pre-embedded wire pipe inner diameter ≥ Φ21MM can pass through 1 complete power cable (with "IP68 waterproof connector").

Pre-embedded wire pipe inner diameter ≤Φ20MM can't be directly through 1 complete power cable, need to cut off the "IP68 waterproof connector" splicing extension can be put through. Please refer to "IP67 power cable extension splicing kit" instructions.

A. One power cable for one outlet hole

B.Two power cables for one outlet hole

Pre-embedded wire pipe inner diameter ≥ Φ30MM can pass through 2 complete power cable (with "IP68 waterproof connector").

Pre-embedded wire pipe inner diameter Φ21~29MM can't be directly through 2 complete power cable, need to cut off the "IP68 waterproof connector" splicing extension can be put through. Please refer to "IP67 power cable extension splicing kit" instructions.
