DMX 512 Control System Using Guides

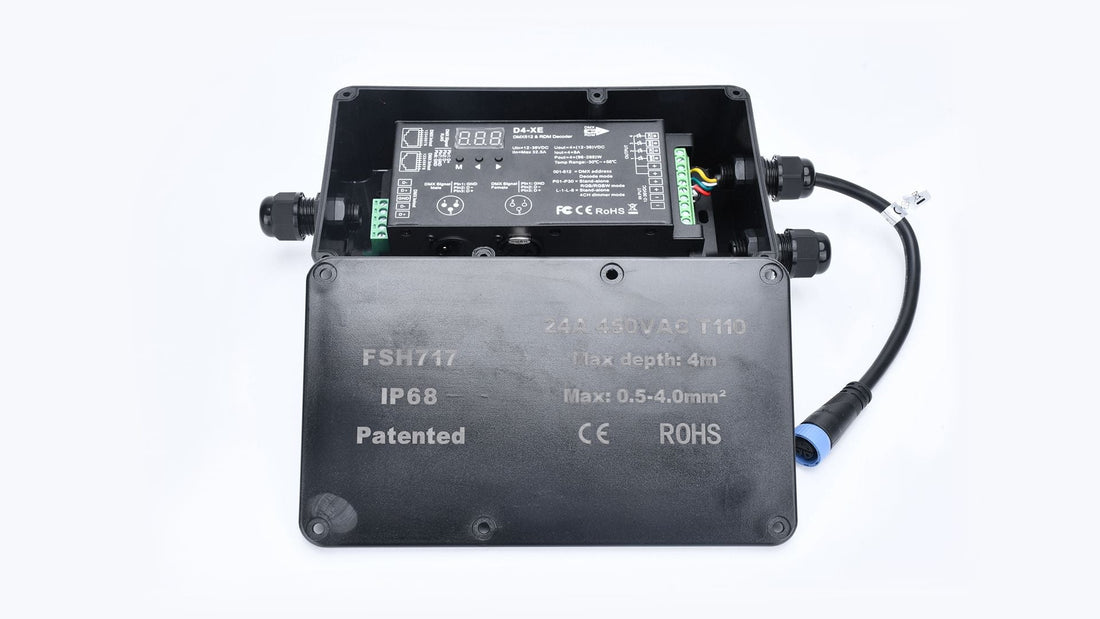

DMX512 decoder is suitable for RGB and RGBIC light strip, this article introduces how to use with RGB light strip.DMX512 is a digital control protocol widely used in stage lighting, sound and special effects equipment, the full name is Digital Multiplex.

Core features:

1. digital signals

Replacement of earlier analog signals (e.g., 0~10V voltage control). Strong anti-interference, more stable transmission. Data format: each channel accounts for 1 byte (0~255), which can represent brightness, color, position and other parameters. 2.

2. High channel count

supports up to 512 independent control channels, a single DMX packet can control up to 512 devices (e.g. lamps, projectors, smoke machines).

3. Asynchronous serial communication

Transmission rate: 250kbps (250,000 bits per second)

Physical interface: use 3-pin XLR connector

4. Real-time

Low latency, suitable for wide range of lighting.

Advantages

Strong anti-interference, long distance transmission (up to 1000 meters)

Support large-scale equipment linkage

Strong compatibility, low cost of equipment

Disadvantages

Single transmission of only 512 channels of data

Extension of channels required by additional protocols (e.g. Art-Net)

Real-time dependence on network stability

Please watch the operation video of the connection between DMX512 decoder and RGB light strip, and if you have any questions, please contact us.
