Step-by-Step: Connect Multiple LED Lighting for Steps
LED lights enhance both safety and aesthetics on steps. PaneraLux Outdoor Step Lights are an excellent option, illuminating paths and reducing fall risks.
Many wonder, " Are Outdoor Stair Lights Worth It? " Absolutely, they are.
And now, learn how to connect multiple led step lights effortlessly with these insights.
Table of Contents:
- Getting Ready to Install Exterior Step Lights LED
- Planning the Setup Stair Step Lighting
- Installing the Stair LED Strip Lights
- Connect the Power Cable with Power Supply
- Connect the Controller to the Power Supply
- Connect the Controller to the Extension Cable
- Connect the LED Lights for Outdoor Steps
- Attaching the Lights to the Steps
- Connecting the Wiring
- Testing the System
- Related Connection Video for Outdoor Stair Lighting System:
Getting Ready to Install Exterior Step Lights LED
Obviously, we need to prepare some before connection the led stair lights outdoor :
- Lights : You can’t connect without your step lights. If you are just looking to learn how to link multiple light strips before purchasing, shouldn't miss our previous blog to select top outdoor LED step lights .
- Power supply
- Controller
- Extension cable for single color outdoor step lights
- IP67 waterproof connector
- Bare wire
- Scissors
- Screwdriver
- Measuring tape
- Drill
- Glass adhesive
Choose the right power supply/controller or other accessories, if you are not sure, feel free to contact us online.
Planning the Setup Stair Step Lighting
Correct measurements help fit your LED lights perfectly:
- Use a measuring tape to find each step's width.
- Write down measurements to keep them the same on all steps.
- Cut and reseal the outdoor step lights to suitable length. You can do that by our tutorial video to Cut and Reseal Your Stair LED Strip Lights .
- Think about height between steps for best light spots.
Installing the Stair LED Strip Lights
Connect the Power Cable with Power Supply

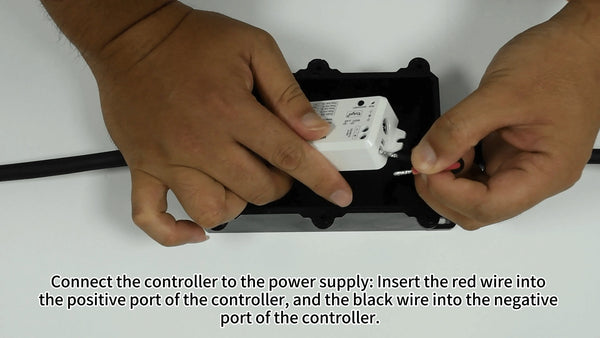

Connect the Controller to the Power Supply
Insert the red wire into the positive port of the controller, and the black wire into the negative port of the controller.
Tighten the screws, seal the cover, and tighten the waterproof junction box sealing screws to prevent water from entering.
Connect the Controller to the Extension Cable
Connect the controller to the extension cable, and tighten the cable glands.
Connect the extension cable to the waterproof box, tighten the cable glands.
Connect the LED Lights for Outdoor Steps
Attaching the Lights to the Steps
There are two mounting ways:
First, put the LED lights on each step. Make sure they match your measurements. Use a drill to make holes for the lights. Put screws in and tighten them to keep lights steady. This stops them from moving or falling off, making it safer and nicer.
Install staircase led strip lights in the grooves of the steps, apply glass adhesive to the backing.
Connecting the Wiring
Cut and prepare the bare wires according to the length of the place you want to install outdoor step lights.
Screw the sealing screws of the waterproof junction box.
Reuse bare cable and waterproof box with multiple LED lighting for steps until all the lights are installed.
Testing the System
Ensuring All Lights Are Functioning
After setup, test if all lights work. Turn on power and look at each light. They should all shine equally bright. If one doesn’t light up, check connections again.
Troubleshooting Common Issues
Fixing problems means finding and solving them fast. If a light is out, check wires for loose parts or wrong links. Ensure power is on with the right voltage. Change bad connectors or wires to fix it. Regular checks help keep under step lighting working long.
You can also visit our YouTube channel to learn how to connect outdoor stair lighting systems . This will help you get the best results.
LED lights are great for steps. They make them safer and look better. These lights use less energy and last long, saving money. Follow the guide to set them up right. Clearing and maintaining the light is equally important, explore 10 tips to clear and maintain LED strip lights effectively.
For expert advice and assistance in choosing the perfect landscape LED strip lights for your outdoor space, feel free to reach out to our team. Email or click the icon in the bottom right corner, chat with us and you can get professional advice soon.
